MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0.33490	0.99300	0.50100	8	m_x,m_y,m_z	0.0	2.00(5)	0.0	2.00
Ni2	Ni	0.33600	0.99720	0.68700	8	m_x,m_y,m_z	0.0	-1.73(7)	0.0	1.73

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Nb	Nb	0.02800	0.99600	0.85500	8
O1	O	0.00000	0.28700	0.75000	4
O2	O	0.16690	0.16940	0.92850	8
O3	O	0.16300	0.17480	0.59750	8
O4	O	0.14860	0.14900	0.25020	8
O5	O	0.50080	0.16710	0.91550	8

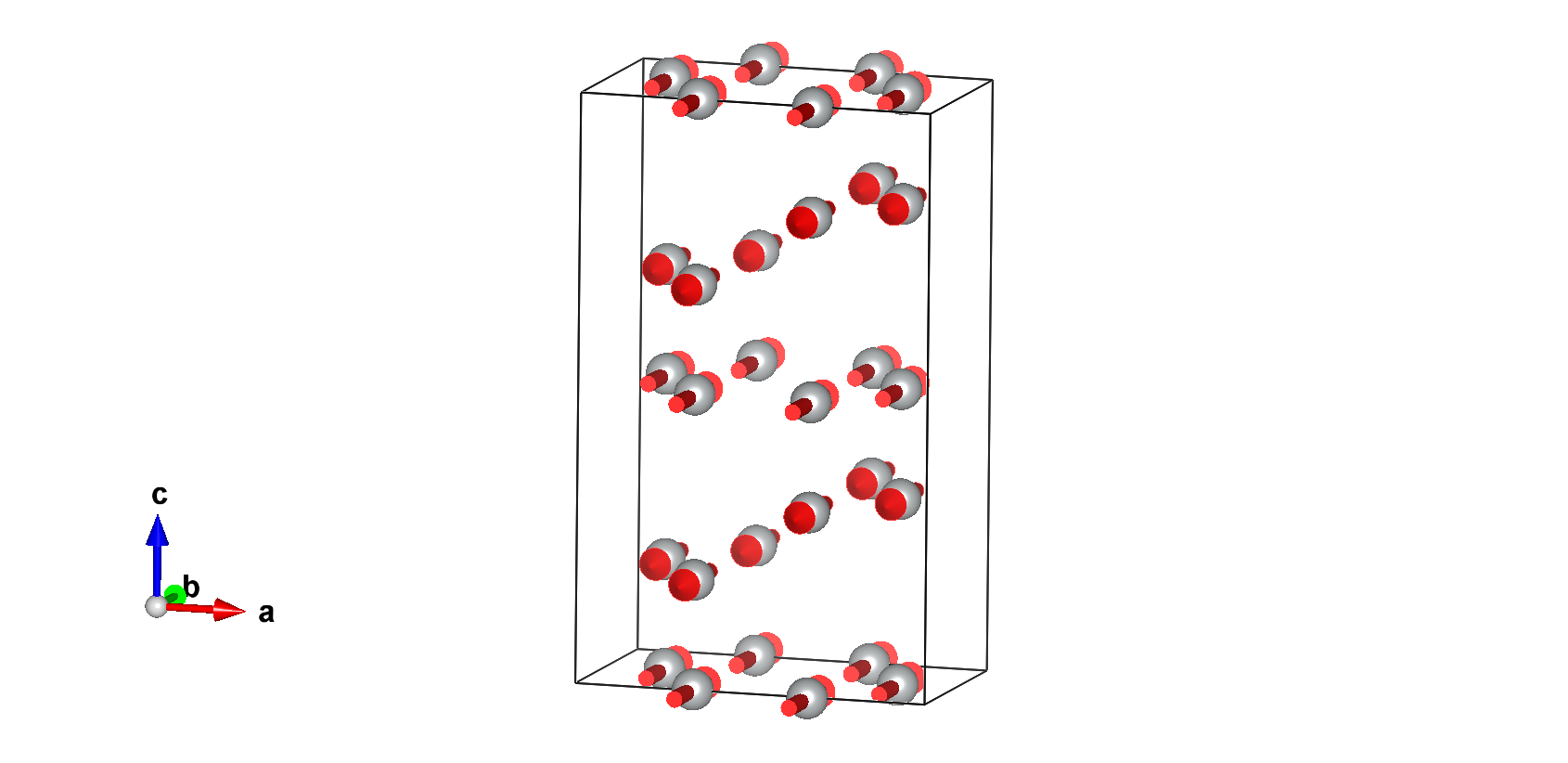

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.33490	0.99300	0.50100	m_x,m_y,m_z	2.00000
2	0.16510	0.50700	0.00100	m_x,m_y,-m_z	2.00000
3	0.83490	0.50700	0.49900	-m_x,m_y,m_z	2.00000
4	0.66510	0.99300	0.99900	-m_x,m_y,-m_z	2.00000
5	0.66510	0.00700	0.49900	m_x,m_y,m_z	2.00000
6	0.83490	0.49300	0.99900	m_x,m_y,-m_z	2.00000
7	0.16510	0.49300	0.50100	-m_x,m_y,m_z	2.00000
8	0.33490	0.00700	0.00100	-m_x,m_y,-m_z	2.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni2:

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.33600	0.99720	0.68700	m_x,m_y,m_z	-1.73000
2	0.16400	0.50280	0.18700	m_x,m_y,-m_z	-1.73000
3	0.83600	0.50280	0.31300	-m_x,m_y,m_z	-1.73000
4	0.66400	0.99720	0.81300	-m_x,m_y,-m_z	-1.73000
5	0.66400	0.00280	0.31300	m_x,m_y,m_z	-1.73000
6	0.83600	0.49720	0.81300	m_x,m_y,-m_z	-1.73000
7	0.16400	0.49720	0.68700	-m_x,m_y,m_z	-1.73000
8	0.33600	0.00280	0.18700	-m_x,m_y,-m_z	-1.73000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Nb:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

Set of atoms in the unit cell related by symmetry with the atom O5:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0.33490	0.99300	0.50100	8	m_x,m_y,m_z	0.0	2.00(5)	0.0	2.00
Ni2	Ni	0.33600	0.99720	0.68700	8	m_x,m_y,m_z	0.0	-1.73(7)	0.0	1.73

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4+	1	1	primary	6
